CATALOG TYPE
產品分類
| Part Number |
Hold Current |
Trip Current |
Max.Time to Trip |
Max Current |
Rated Voltage |
Max. Int. Voltage |
Typ. Power |
Resistance | ||
| RMIN | R1MAX | |||||||||
| IH,A | IT,A | at 5XIH,S | IMAX, A | VMAX, VAC | VI-MAX, VAC | Pd, W | Ohms | Ohms | ||

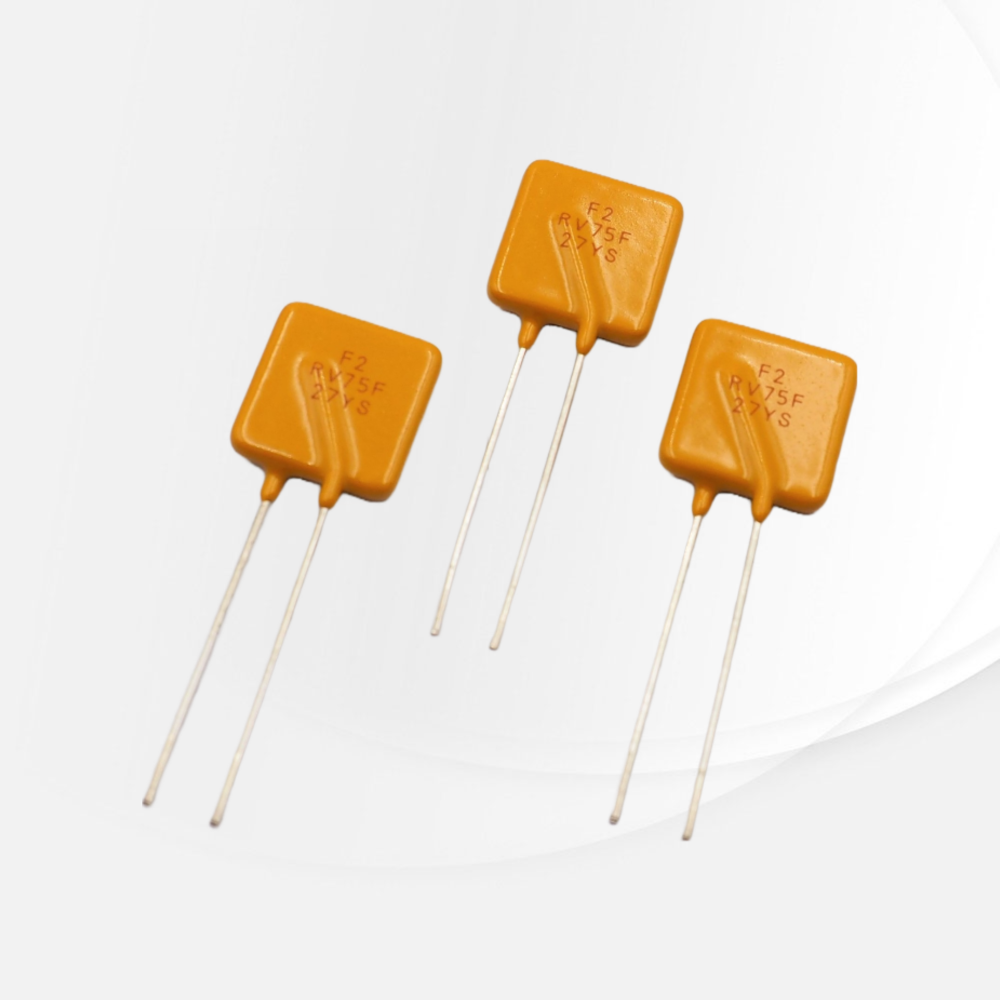

| FRV005-277F | 0.05 | 0.20 | 18.00 | 1.0 | 277 | 305 | 0.70 | 8.00 | 26.00 | |
| FRV008-277F | 0.08 | 0.26 | 18.00 | 1.0 | 0.80 | 5.50 | 18.00 | |||
| FRV012-277F | 0.12 | 0.30 | 18.00 | 1.2 | 1.00 | 3.50 | 12.00 | |||
| FRV016-277F | 0.16 | 0.37 | 18.00 | 1.6 | 1.40 | 2.30 | 8.00 | |||
| FRV025-277F | 0.25 | 0.56 | 18.50 | 2.5 | 1.50 | 1.30 | 4.30 | |||
| FRV033-277F | 0.33 | 0.74 | 21.00 | 3.3 | 1.70 | 0.94 | 3.10 | |||
| FRV040-277F | 0.40 | 0.90 | 24.00 | 4.0 | 2.00 | 0.81 | 2.70 | |||
| FRV055-277F | 0.55 | 1.25 | 26.00 | 5.5 | 3.40 | 0.63 | 2.10 | |||
| FRV075-277F | 0.75 | 1.50 | 18.00 | 7.5 | 2.60 | 0.43 | 1.40 | |||
| FRV100-277F | 1.00 | 2.00 | 21.00 | 10.0 | 2.90 | 0.32 | 1.10 | |||
| FRV125-277F | 1.25 | 2.50 | 23.00 | 12.5 | 3.30 | 0.24 | 0.80 | |||
| FRV150-277F | 1.50 | 3.00 | 23.00 | 15.0 | 3.70 | 0.14 | 0.48 | |||
| FRV200-277F | 2.00 | 4.00 | 28.00 | 20.0 | 4.50 | 0.09 | 0.29 | |||
| Part Number |
Hold Current |
Trip Current |
Max.Time to Trip |
Max Current |
Rated Voltage |
Max. Int. Voltage |
Typ. Power |
Resistance | ||
| RMIN | R1MAX | |||||||||
| IH,A | IT,A | at 5XIH,S | IMAX, A | VMAX, VAC | VI-MAX, VAC | Pd, W | Ohms | Ohms | ||
| FRV005-277F | 0.05 | 0.20 | 18.00 | 1.0 | 277 | 305 | 0.70 | 8.00 | 26.00 | |
| FRV008-277F | 0.08 | 0.26 | 18.00 | 1.0 | 0.80 | 5.50 | 18.00 | |||
| FRV012-277F | 0.12 | 0.30 | 18.00 | 1.2 | 1.00 | 3.50 | 12.00 | |||
| FRV016-277F | 0.16 | 0.37 | 18.00 | 1.6 | 1.40 | 2.30 | 8.00 | |||
| FRV025-277F | 0.25 | 0.56 | 18.50 | 2.5 | 1.50 | 1.30 | 4.30 | |||
| FRV033-277F | 0.33 | 0.74 | 21.00 | 3.3 | 1.70 | 0.94 | 3.10 | |||
| FRV040-277F | 0.40 | 0.90 | 24.00 | 4.0 | 2.00 | 0.81 | 2.70 | |||
| FRV055-277F | 0.55 | 1.25 | 26.00 | 5.5 | 3.40 | 0.63 | 2.10 | |||
| FRV075-277F | 0.75 | 1.50 | 18.00 | 7.5 | 2.60 | 0.43 | 1.40 | |||
| FRV100-277F | 1.00 | 2.00 | 21.00 | 10.0 | 2.90 | 0.32 | 1.10 | |||
| FRV125-277F | 1.25 | 2.50 | 23.00 | 12.5 | 3.30 | 0.24 | 0.80 | |||
| FRV150-277F | 1.50 | 3.00 | 23.00 | 15.0 | 3.70 | 0.14 | 0.48 | |||
| FRV200-277F | 2.00 | 4.00 | 28.00 | 20.0 | 4.50 | 0.09 | 0.29 | |||
