CATALOG TYPE
產品分類
| Part Number |
Package | Configuration | Polarity | VDS (V) |
VGS (V) |
VGS(TH) (V) | RDS(ON) (typ. mΩ) @ VGS= | ID (A) @ TC = | ID (A) @ TA = | Ciss (pF) |
Coss (pF) |
Crss (pF) |
||||
| Min. | Max. | 10V | 4.5V | 25oC | 100oC | 25oC | 70oC | |||||||||

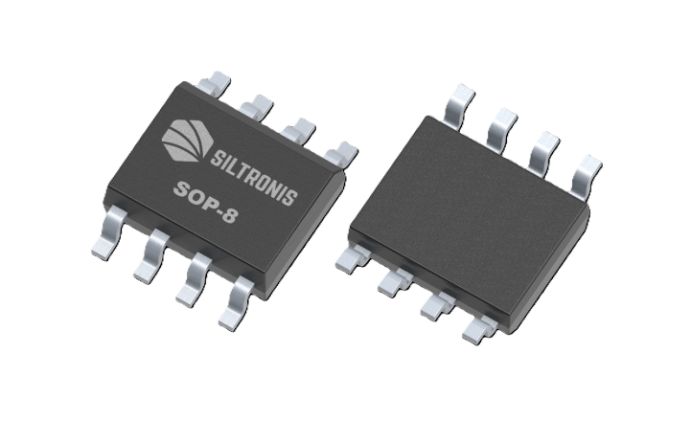

| SPS3218 | SOP-8 | Complementary | N | 30 | ±20 | 1 | 2.5 | 15 | 25 | - | - | 7.9 | 6.3 | 624 | 80 | 52 |
| P | -30 | ±20 | -1 | -2.5 | 45 | 75 | - | - | -4.4 | -3.5 | 561 | 72 | 47 | |||
| SPS6230 | SOP-8 | Complementary | N | 60 | ±20 | 1.2 | 2.5 | 25 | 30 | - | - | 5.9 | 4.7 | 1890 | 69 | 63 |
| P | -60 | ±20 | -1.2 | -2.5 | 55 | 75 | - | - | -4 | -3.2 | 1476 | 75 | 24 | |||
| SPS1210 | SOP-8 | Complementary | N | 100 | ±20 | 1.2 | 2.5 | 90 | 100 | - | - | 3.1 | 2.5 | 1582 | 42 | 41 |
| P | -100 | ±20 | -1.2 | -2.5 | 250 | 280 | - | - | -1.9 | -1.5 | 1543 | 44 | 40 | |||
| Part Number |
Package | Configuration | Polarity | VDS (V) |
VGS (V) |
VGS(TH) (V) | RDS(ON) (typ. mΩ) @ VGS= | ID (A) @ TC = | ID (A) @ TA = | Ciss (pF) |
Coss (pF) |
Crss (pF) |
||||
| Min. | Max. | 10V | 4.5V | 25oC | 100oC | 25oC | 70oC | |||||||||
| SPS3218 | SOP-8 | Complementary | N | 30 | ±20 | 1 | 2.5 | 15 | 25 | - | - | 7.9 | 6.3 | 624 | 80 | 52 |
| P | -30 | ±20 | -1 | -2.5 | 45 | 75 | - | - | -4.4 | -3.5 | 561 | 72 | 47 | |||
| SPS6230 | SOP-8 | Complementary | N | 60 | ±20 | 1.2 | 2.5 | 25 | 30 | - | - | 5.9 | 4.7 | 1890 | 69 | 63 |
| P | -60 | ±20 | -1.2 | -2.5 | 55 | 75 | - | - | -4 | -3.2 | 1476 | 75 | 24 | |||
| SPS1210 | SOP-8 | Complementary | N | 100 | ±20 | 1.2 | 2.5 | 90 | 100 | - | - | 3.1 | 2.5 | 1582 | 42 | 41 |
| P | -100 | ±20 | -1.2 | -2.5 | 250 | 280 | - | - | -1.9 | -1.5 | 1543 | 44 | 40 | |||
